Solid screwable bars
Bars with left-hand thread
Durable screwable bars for geotechnical, structural reinforcement, and foundation support.
Advantages
The bar can be sized directly at the construction site

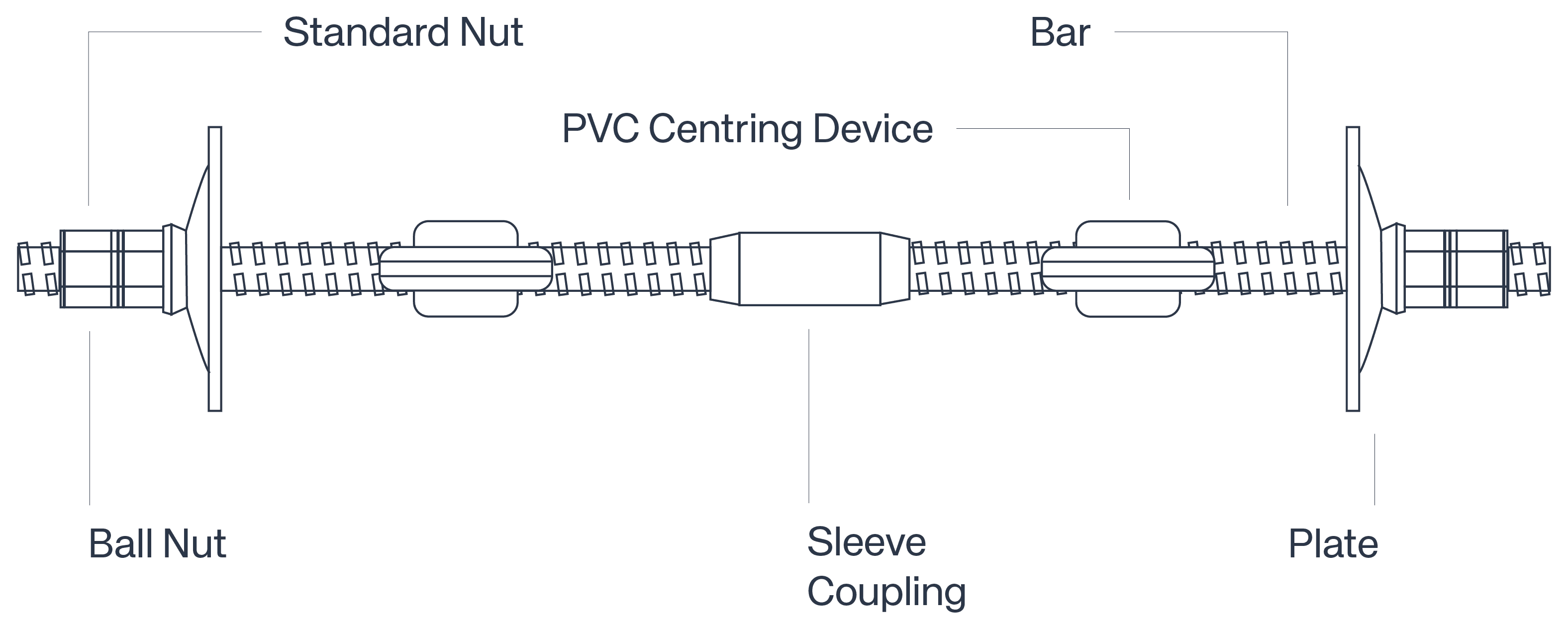

By means of sleeve couplings, multiple bars can be connected together and the system extended
The bar can be bent to obtain different geometries, always keeping the screwable ends
Increase the adhesion between the steel of the bar and the injected cement
On detail
Working steps
Step 1
The threading is made directly
by hot plastic deformation, which guarantees maximum robustness.
Step 2
Bars have a very broad and still growing field of application, thanks to the use of suitable accessories (standard or specific) that allow new technical solutions to be developed or classic ones to be updated.
See different products
Discover various applications and industries with ease—navigate through different products effortlessly.
See different products
Discover various applications and industries with ease—navigate through different products effortlessly.
See different products
Discover various applications and industries with ease—navigate through different products effortlessly.
Specifications
Find detailed specifications including dimensions, weights, chemical compositions, mechanical properties, and dimensional tolerances.
Specifications
Find detailed specifications including dimensions, weights, chemical compositions, mechanical properties, and dimensional tolerances.
Specifications
Find detailed specifications including dimensions, weights, chemical compositions, mechanical properties, and dimensional tolerances.
Business values
We have always been guided by a strong ethical commitment and a value-based code that directs our actions and behaviors.
Integrity & loyalty
We uphold honesty and transparency in every interaction, ensuring trust and accountability in all we do.
Legality & impartiality
We embrace creativity and forward-thinking to develop cutting-edge solutions and drive industry progress.
Transparency & fairness
We strive for the highest standards in quality, service, and performance to exceed expectations every time.
Business values
We have always been guided by a strong ethical commitment and a value-based code that directs our actions and behaviors.
Integrity & loyalty
We uphold honesty and transparency in every interaction, ensuring trust and accountability in all we do.
Legality & impartiality
We embrace creativity and forward-thinking to develop cutting-edge solutions and drive industry progress.
Transparency & fairness
We strive for the highest standards in quality, service, and performance to exceed expectations every time.
Business values
We have always been guided by a strong ethical commitment and a value-based code that directs our actions and behaviors.
Integrity & loyalty
We uphold honesty and transparency in every interaction, ensuring trust and accountability in all we do.
Legality & impartiality
We embrace creativity and forward-thinking to develop cutting-edge solutions and drive industry progress.
Transparency & fairness
We strive for the highest standards in quality, service, and performance to exceed expectations every time.
Technical specifications
Micropiles made by using mortar Connecting elements between artifacts made of concrete.
Model
GW20
GW25
GW28
GW32
GW40
GW50
GW63,5
Steel B500B
Yield Strength
157 kN
246 kN
308 kN
402 kN
628 kN
981 kN
1757 kN
Breaking strength
173 kN
270 kN
338 kN
442 kN
690 kN
1080 kN
2217 kN
Section (mm2)
314 mm2
491 mm2
616 mm2
804 mm2
1256 mm2
1963 mm2
3167 mm2
S555/770 Ø 63,5
Weight (kg/m)
2,47 kg/m
3,85 kg/m
4,83 kg/m
6,31 kg/m
9,86 kg/m
15,41 kg/m
24,86 kg/m
Technical specifications
Model
GW18S
GW22S
GW25S
GW28S
GW30S
GW35S
GW43S
GW57,5S
GW63,5S
GW75S
Yield Strength
170 kN
255 kN
329 kN
413 kN
474 kN
645 kN
973 kN
1740 kN
2122 kN
2960 kN
Steel S670
Breaking strength
204 kN
304 kN
393 kN
493 kN
565 kN
770 kN
1162 kN
2077 kN
2534 kN
3534 kN
Section (mm2)
254 mm2
380 mm2
491 mm2
616 mm2
707 mm2
962 mm2
1452 mm2
2597 mm2
3167 mm2
4418 mm2
Weight (kg/m)
2,00 kg/m
2,98 kg/m
3,85 kg/m
4,83 kg/m
5,55 kg/m
7,55 kg/m
11,40 kg/m
20,38 kg/m
24,86 kg/m
34,68 kg/m
Technical specifications
Upon request for bars and accessories ZINC PLATING for max. 3 m according to UNI EN ISO 2081:2018 and UNI EN ISO 9227
D
(mm)
20
25
28
32
40
50
63,5
A
(mm2)
341
491
616
804
1256
1963
3167
Weight
(kg/m)
2,47
3,85
4,83
6,31
9,87
15,41
24,90
d
(mm)
22,1±0,4
27,6±0,4
30,5±0,4
35,4±0,5
43,9±0,5
54,5±0,5
67,6±0,5
s
(mm)
19,1±0,5
23,9±0,5
26,8±0,5
30,7±0,6
38,5±0,6
48,3±0,6
60,0±0,6
t
(mm)
1,3±0,3
1,6±0,1
1,8±0,2
2,1±0,3
2,4±0,3
2,8±0,3
2,5±0,3
k
(mm)
4,8
5,9
6,7
7,6
9,5
12,0
12,2
r
(mm)
2,00
2,00
2,50
2,50
2,75
2,75
2,75
p
(mm)
10,0±0,3
12,5±0,3
14,0±0,3
16,0±0,3
20,0±0,3
26,0±0,3
21,0±0,3
G
(degrees)
81,5°
81,5°
81,5°
81,5°
81,5°
81,5°
82,5°
Sample accessories
At ASG SpA, we value integrity, innovation, and excellence. These principles guide our
Accessories
Nuts
Accessories
Special accessories adaptor - eyebolts
Accessories
Flate plates - curved plates
Accessories
Plates with protection
Accessories
Sleeves
